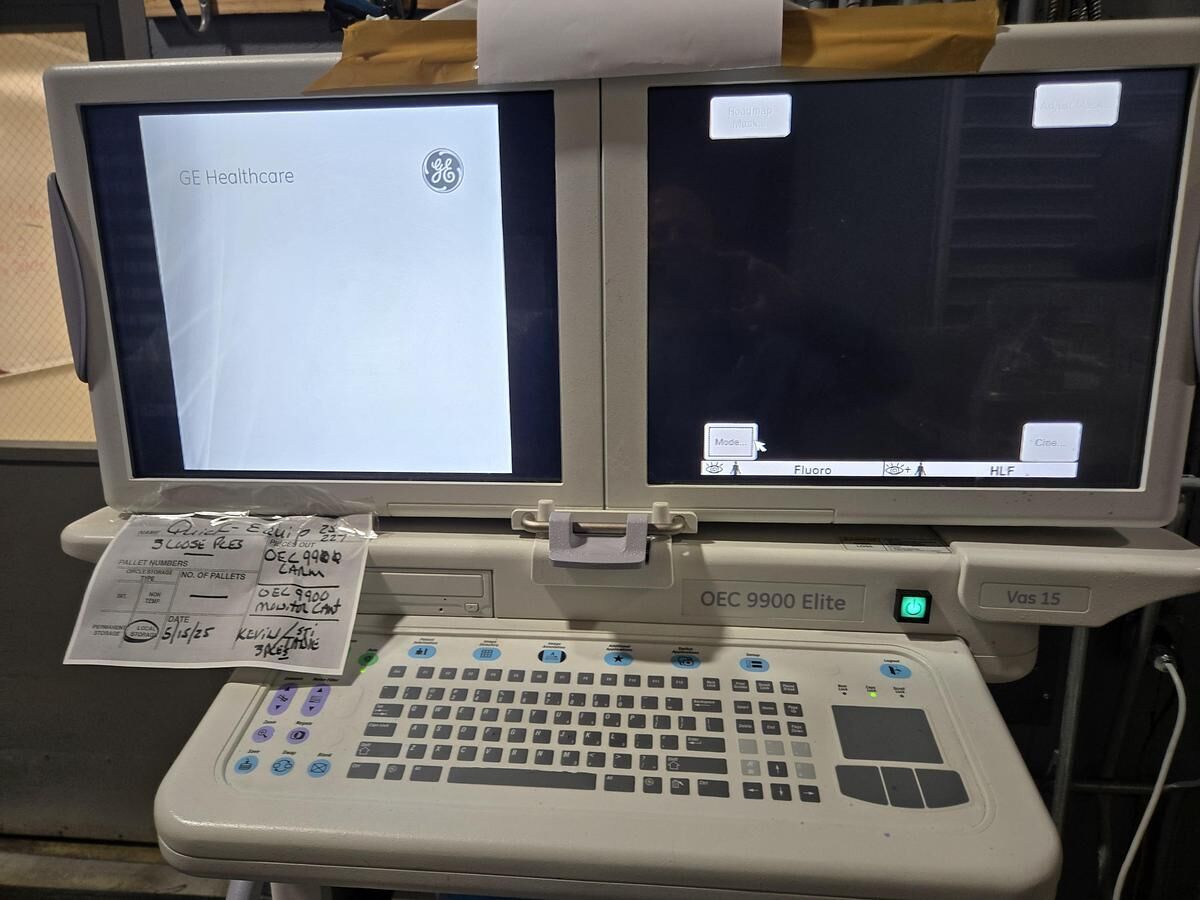

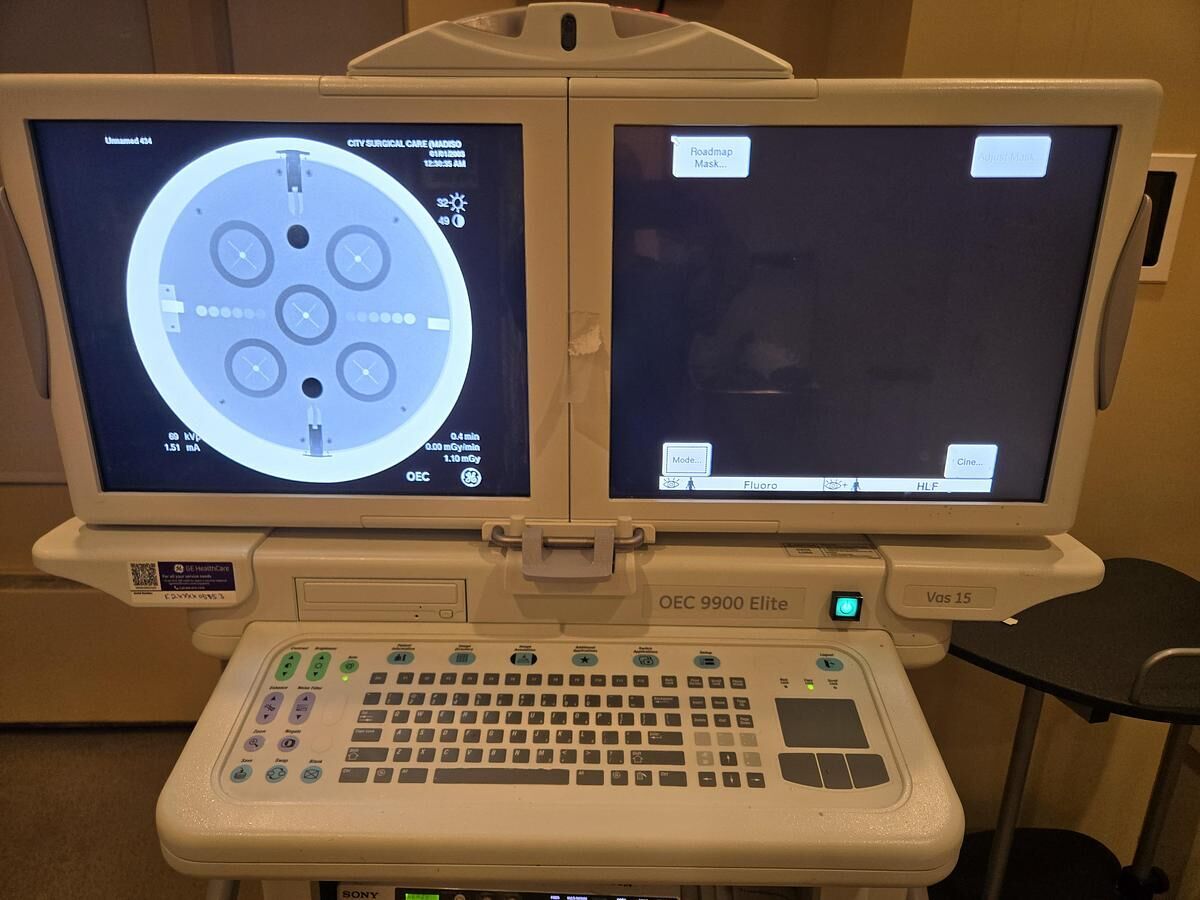

E OEC 9900 Elite Vas 15 C-Arm System

12" II

DOM: 12/2016

USED - TESTED - LOW USAGE

OEM MAINTAINED

*FOB Yaphank, NY*

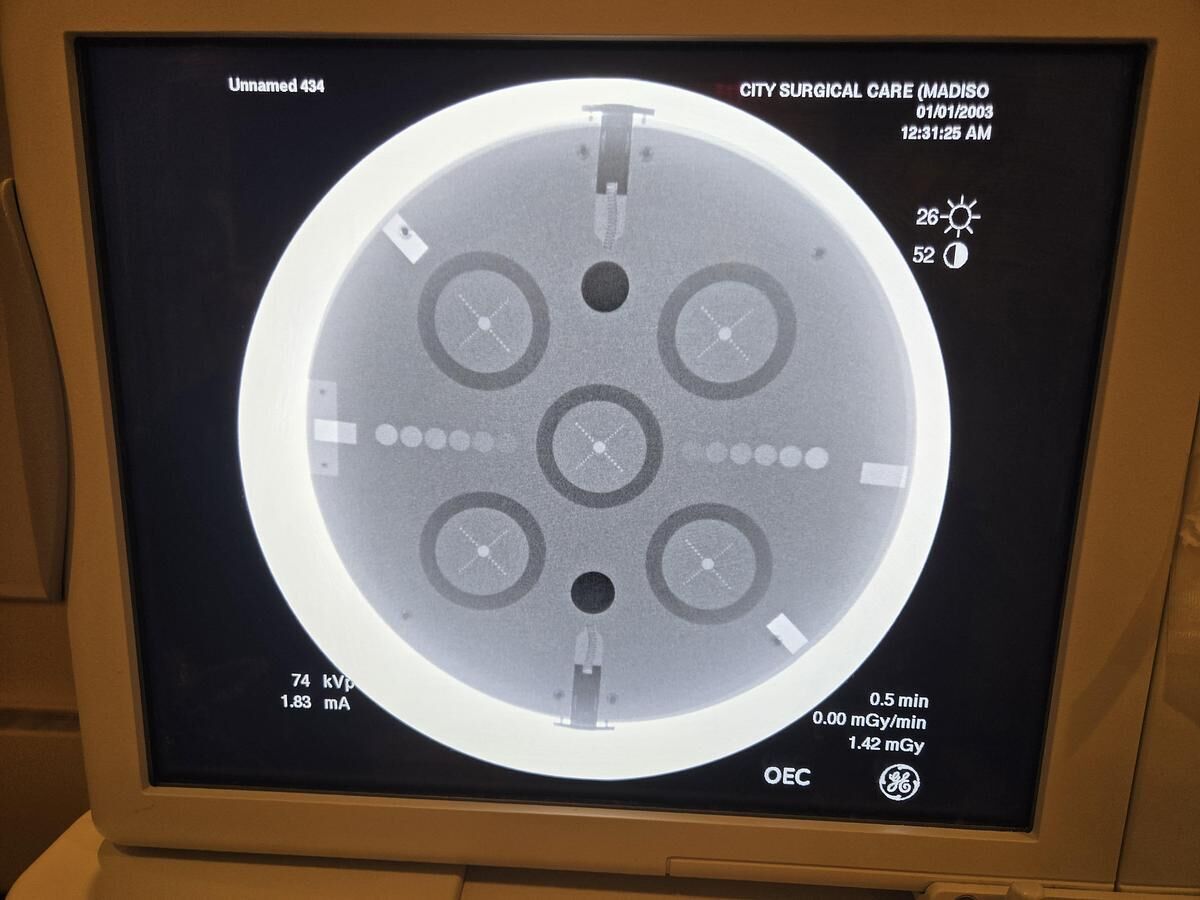

Video Imaging System:

12” Image Intensifier

• Tri-mode 12”/9”/6”

(31cm/23cm/15cm) image intensifier

• Minimum central resolution (at monitor):

- 12” (31cm): 1.6 lp/mm

- 9” (23cm): 2.2 lp/mm

- 6” (15cm): 2.6 lp/mm

• DQE: 65% (typical)



Configurations:

• 1k x 1k x 16 bit image processing

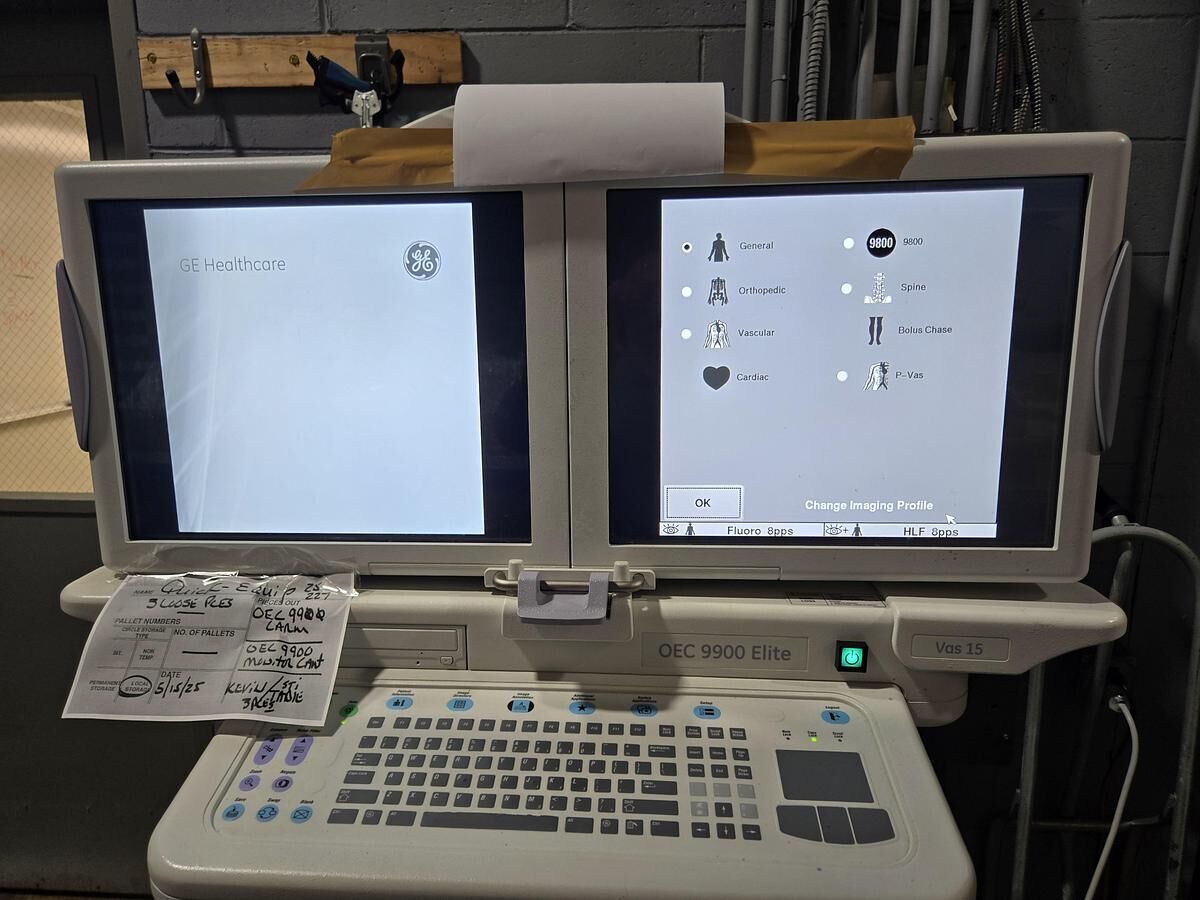

• Preset Imaging Profiles

- 9800

- General

- Orthopedic

- Spine

• Noise filter with on-screen indicator

• Minimal difference spatio-temporal noise filter (MDST)

• Real time dynamic range management (DRM)

• Automatic digital brightness and contrast control

• Manual digital brightness and contrast control

• Negate mode

• Save and auto-save feature

• Swap and auto-swap feature

• Patient information

- Examination list

- Customized patient information

• Customize functions

- Workstation set-up

- Mainframe set-up

- Patient information set-up

- Date/time set-up

- DICOM interface set-up

• Last image hold

• 63 image storage

• CD/DVD burner with DICOM viewer for displaying images on PC platforms

- 512 x 512 or 1k x 1k

• Integrated DICOM interface (store, print,

worklist, and query/retrieve)

• HIPAA SecureView®

- Password protection

- Blank screen function

- Delete all

• 1000 image storage

• Zoom and roam function

• Image annotation

• Measurement software

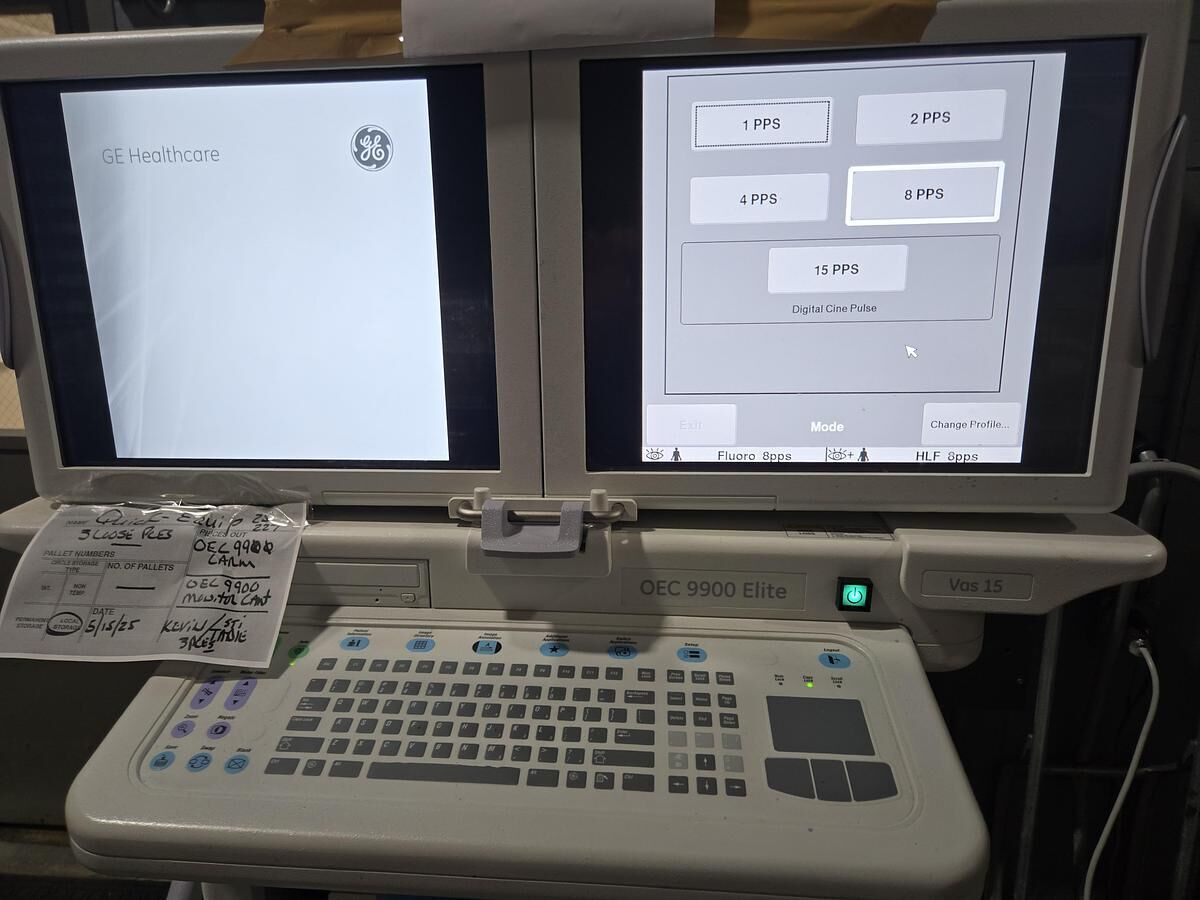

• 15fps Dynamic digital disk (60 Hz) 12fps (50 Hz)

- Recording/playback rate: 1, 2, 4, 8, 15fps (60 Hz) 12fps (50 Hz)

- Automatic image playback capability

- Frame-by-frame review

- Recording time: 10 minutes @ 15fps (60 Hz) 12 fps (50 Hz)

• Real-time subtraction

• Digital subtraction (DSA) angio

• Peak opacification

• 8fps Dynamic digital disk

- Recording/playback rate: 1, 2, 4, 8fps

- Recording time: 5 minutes @ 8fps

- Automatic image playback

- Frame-by-frame review

• Vascular preset imaging profile

• Roadmapping

• Re-registration

• Variable landmarking

• Mask save/recall

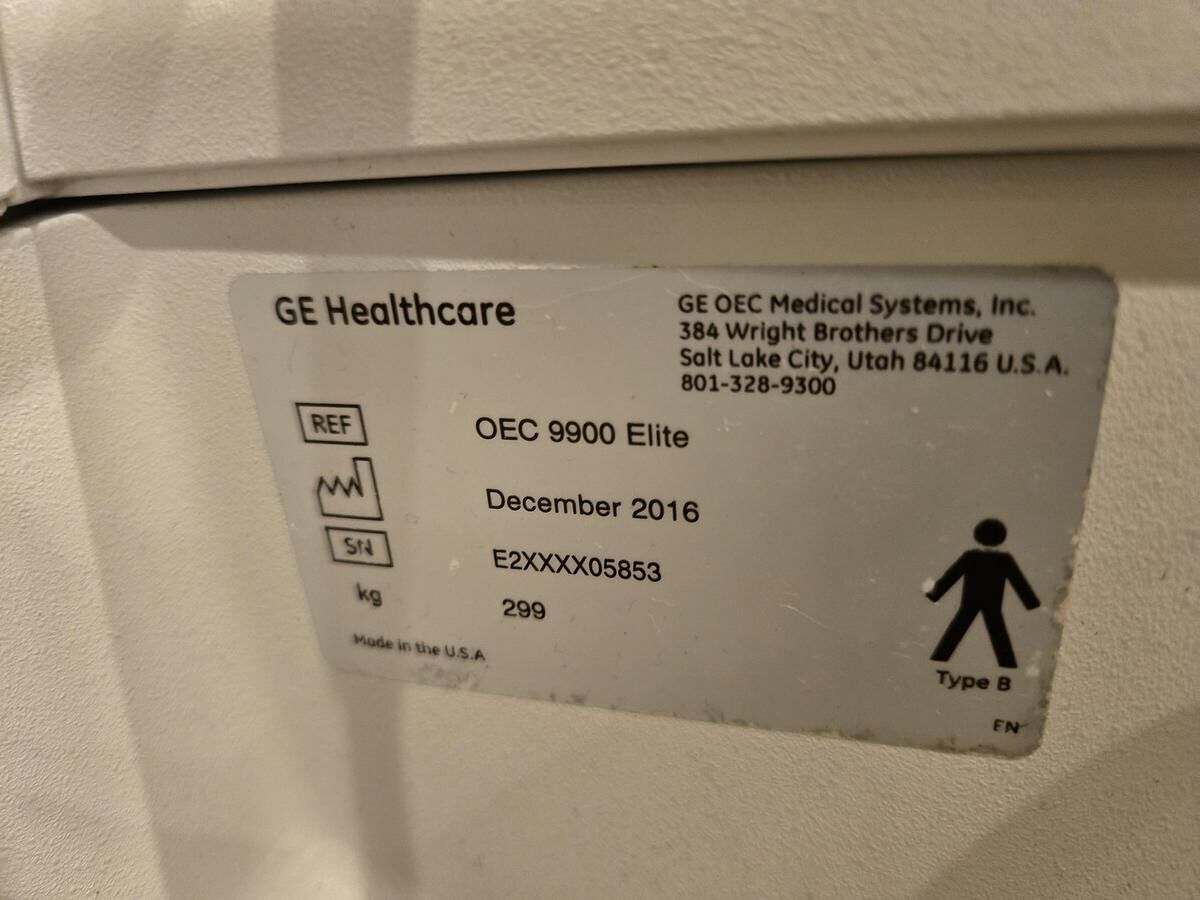

MPN: 9900
Image Intensifier : 12'
Year of Manufacture: 2016

S/N: E2XXXX05853

MPN: 9900


----

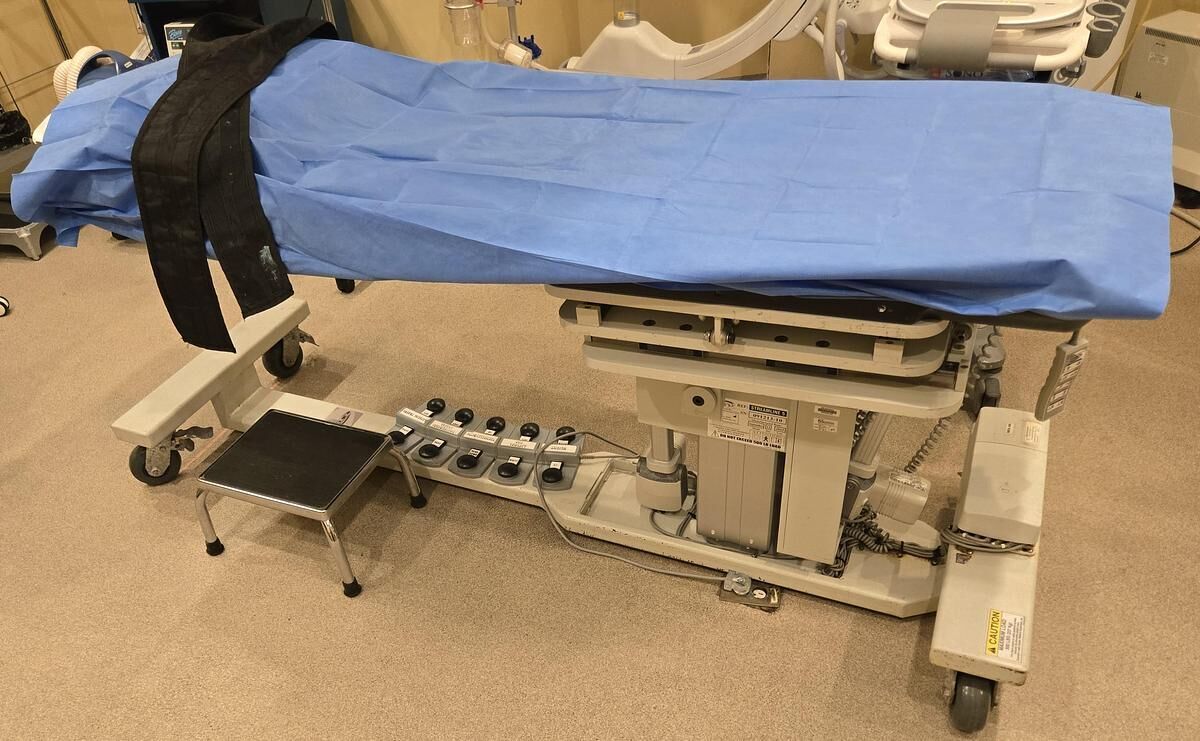

STI Streamline 5 C-Arm Imaging Table

The STI Streamline 5 Motion C-Arm Imaging Table Model SL-5 is perfect for pain management. Each diving board style table comes with a pair of patient straps, a facial cutout (which can be filled), and a hand control. Pain procedures often require precise positioning. These c-arm tables are quiet and vibration free leaving the end user worry free. Additionally, the radiolucent tabletop does not have any cross-members, allowing for full visualization under fluoro.



Motor Driven Motion:

Height Adjustment: 33.5" to 43.5"
Lateral Tilt: (+/-) 17°
Trendelenburg: (+/-) 13°
Longitudinal Travel: 10" (+/- 5")
Lateral Travel: 10" (+/- 5")

Features:

Carbon fiber, diving board style for easy C-arm access
An 84″ length can accommodate even the tallest of patients
A 24″ top eliminates the need for arm boards
2" thick, high quality patient comfort pad
Facial cut-out for prone procedures
(2) patient straps
Long, I-style base
Extreme low position makes boarding patients fast, easy, and safe
Simple to use, high-quality wheel locks

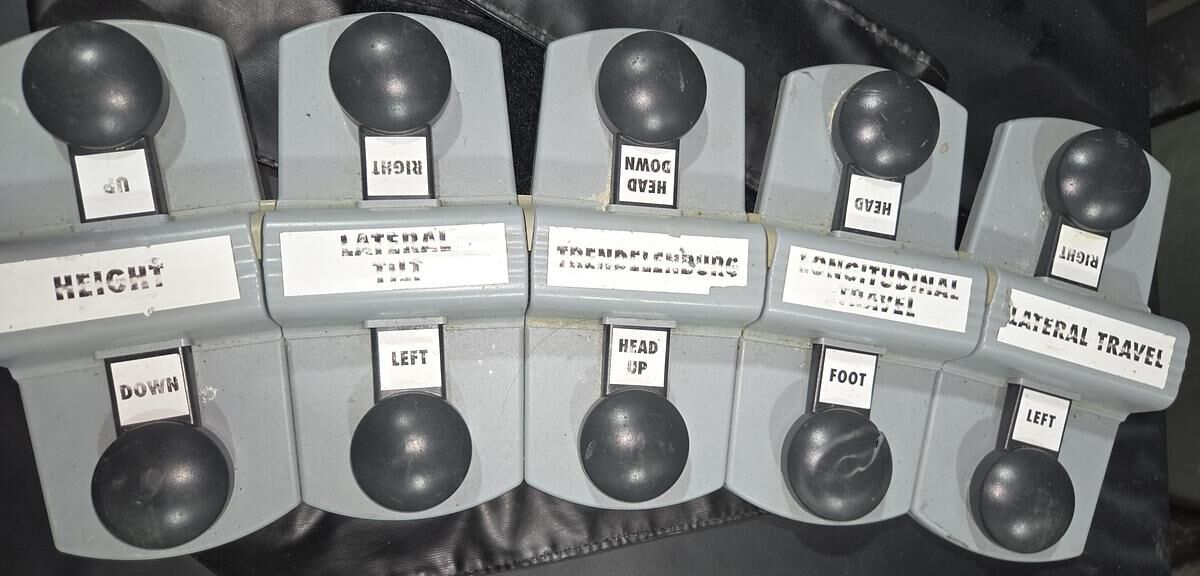

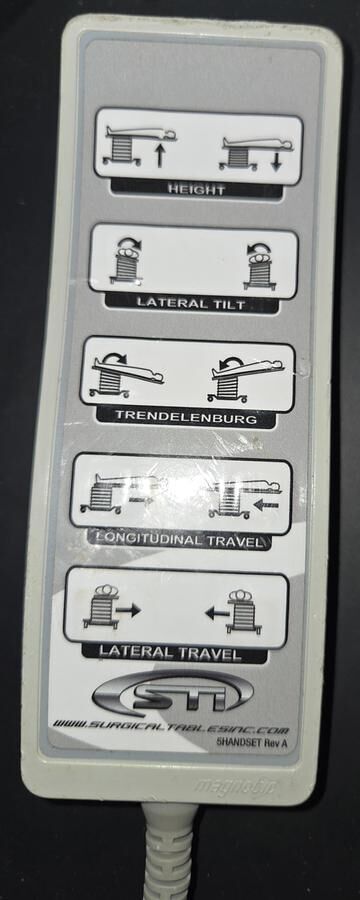

Come with a hand control that features
Height Buttons: support raising and lowering the tabletop
Lateral Tilt Buttons: control the lateral angle of inclination
Trendelenburg Buttons: control the angle of inclination of the head end
Longitudinal Travel Buttons: move the table top in the longitudinal direction
Lateral Travel Buttons: controls table movements in the lateral direction
Large patient capacity – high-end actuator motor supports 500-pound loads
Light weight – easy to physically move the table within the room or from room to room

Specifications

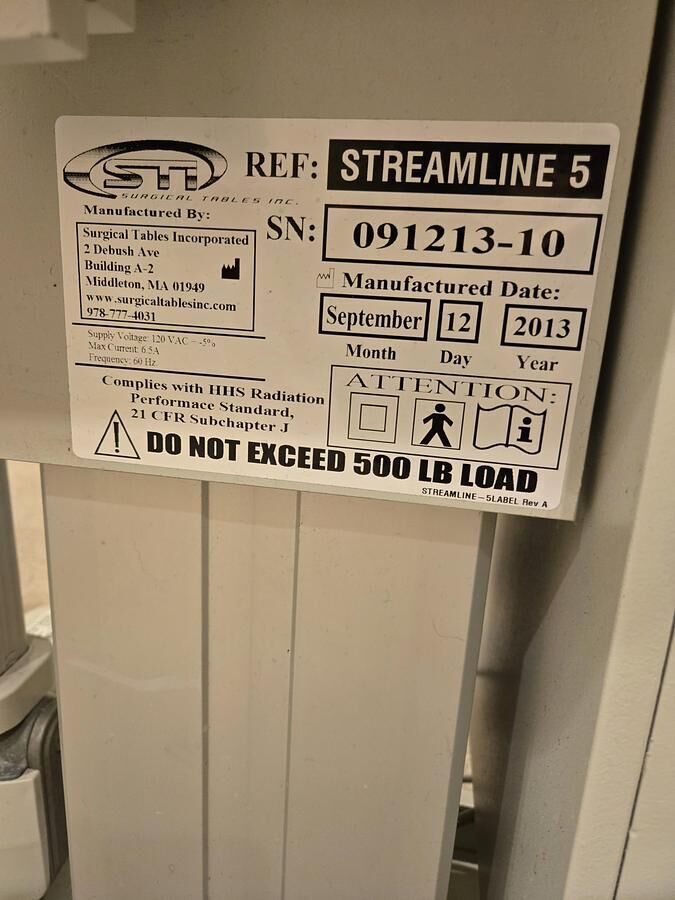

Manufacturer Surgical Tables Inc.
Model SL5
Year 2013
Condition Used
Serial Number 091213-10
Stock Number 387349682151
