For Sale GE Cytiva Typhoon FLA 9500 Fluorescence Laser Scanner Biomolecular Imager w/ FLA Image Eraser
• Fully Functional
• Serviced & in Stock
• Current Model
• Good cosmetic condition
• Technical sales consultation available
• WARRANTY
• Includes remote instrument setup and training session
________________________________________
Here is what you will receive:

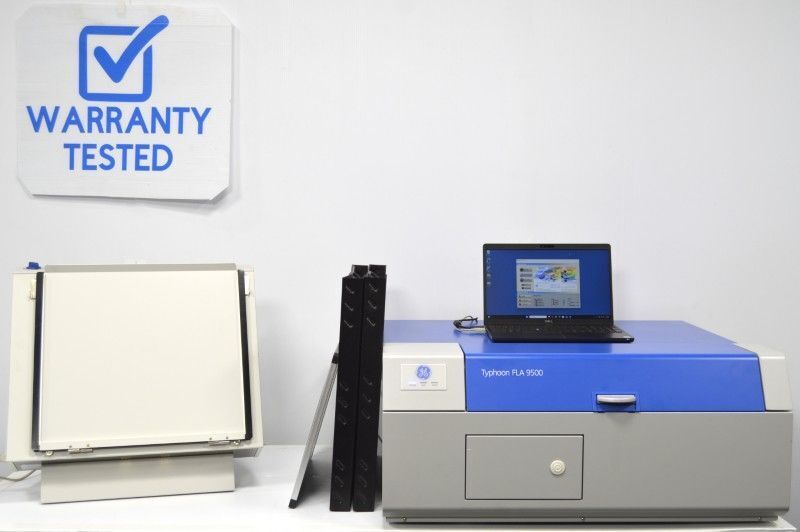

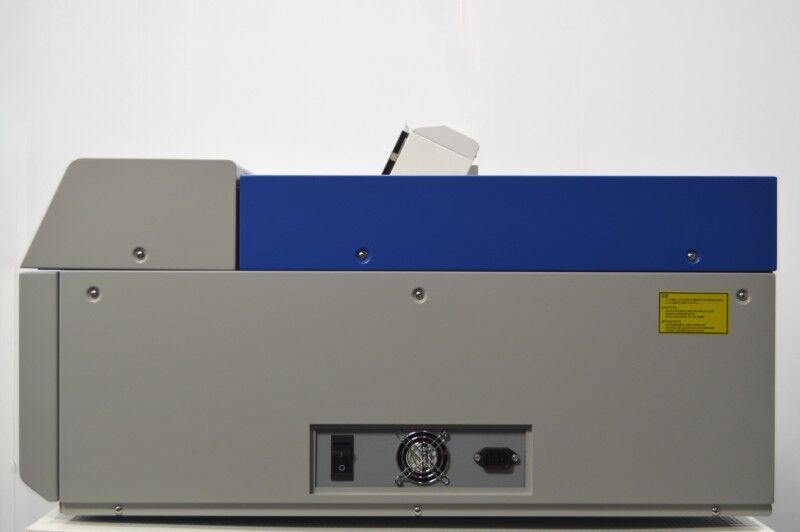

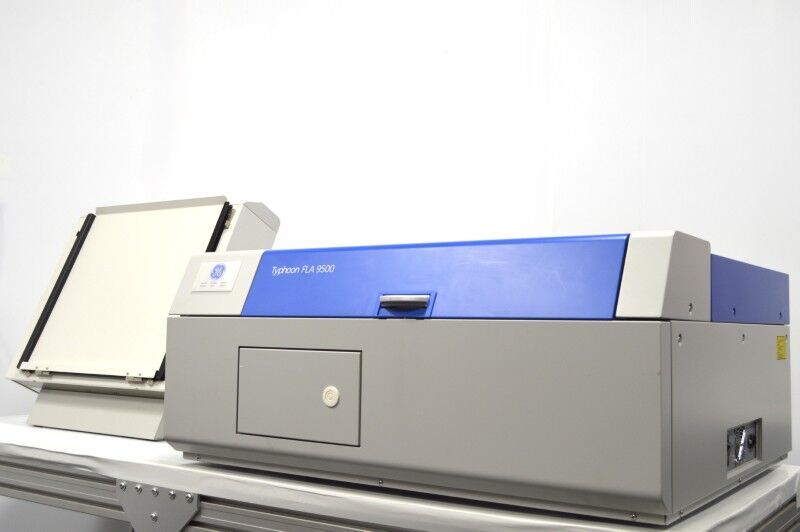

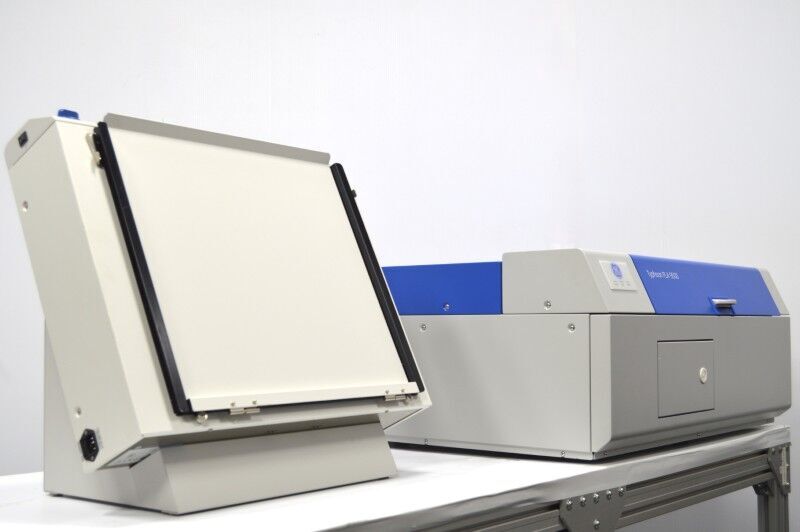

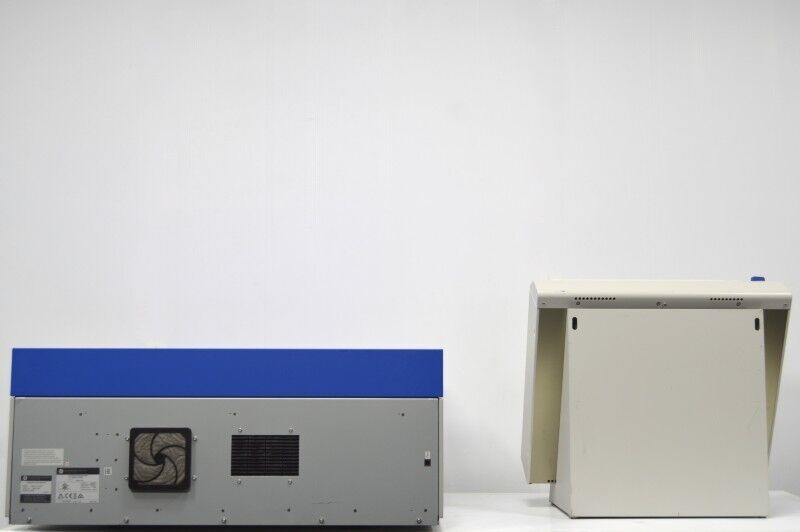

• GE Typhoon FLA 9500 Imaging System

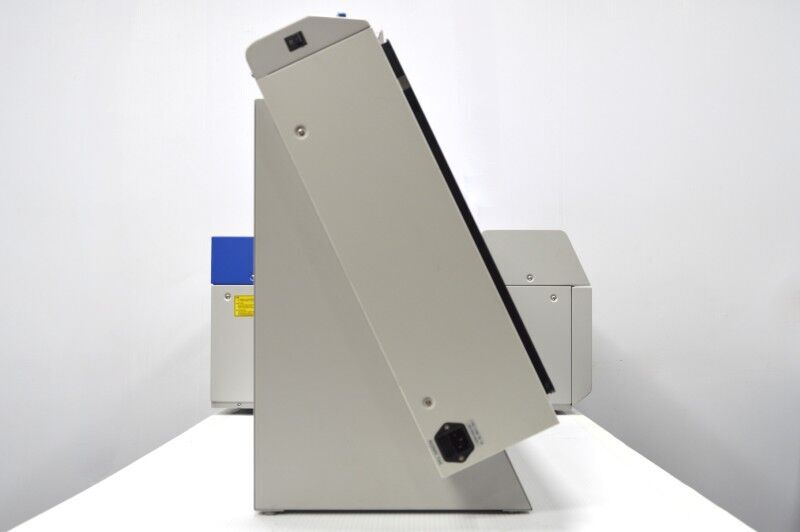

• FLA Image Eraser

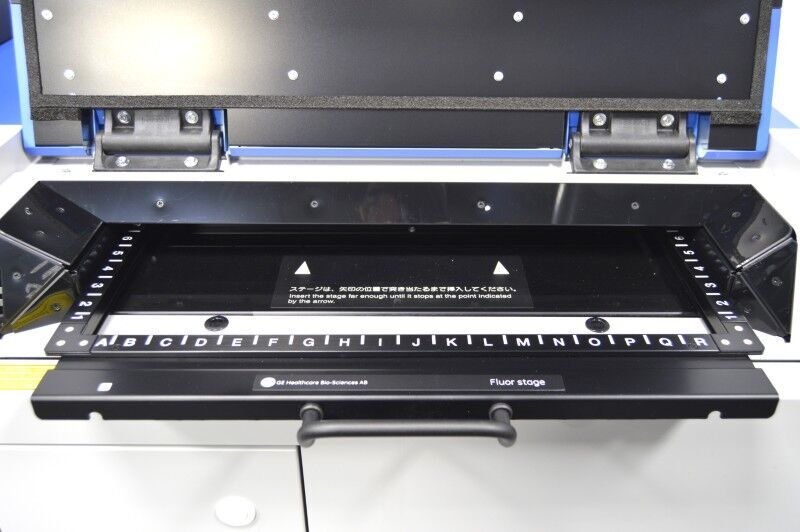

• Fluor Stage

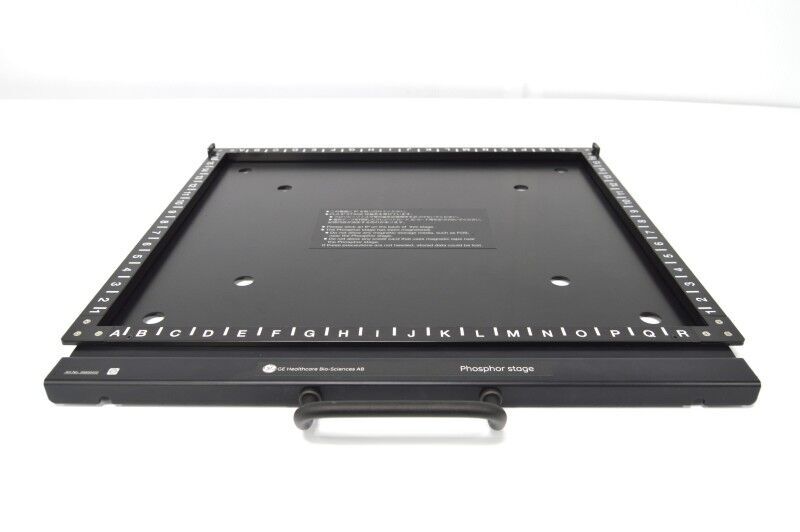

• Phosphor stage

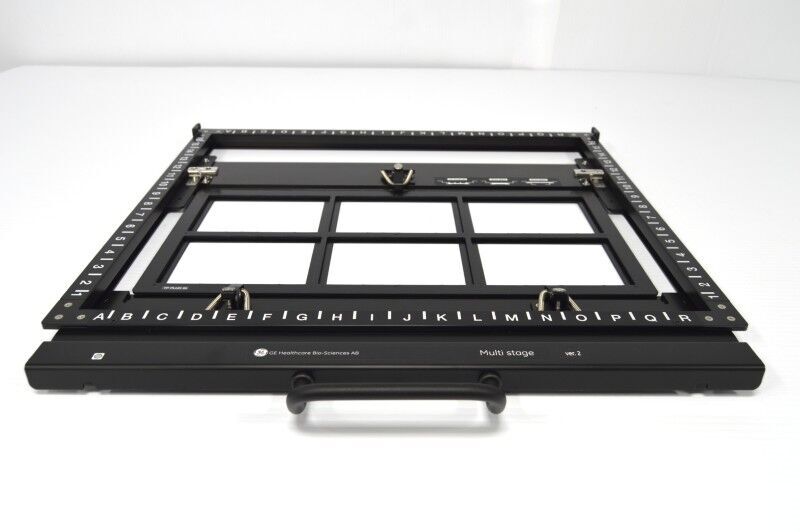

• Multi-stage w/titer plate (TP) plugin

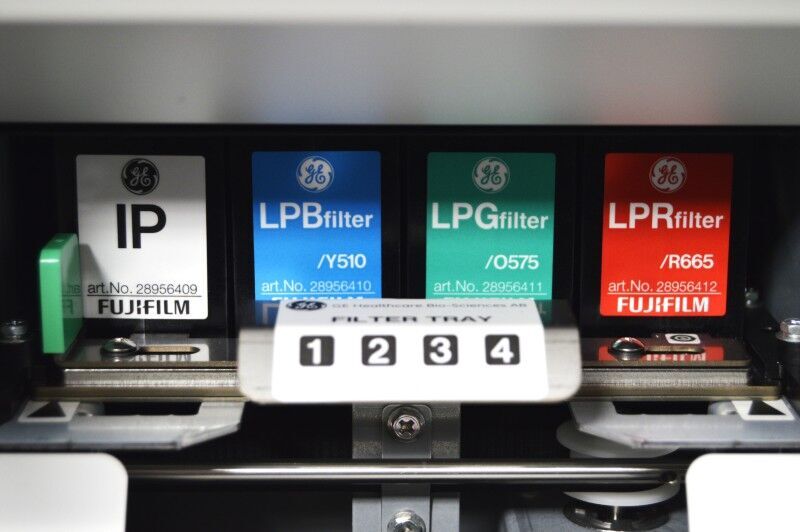

• Filter Carrier:
- IP (Phosphorimaging)
- LPB/Y510 (Blue excitation / green emission)
- LPG/O575 (Green excitation / orange emission)
- LPR/R665 (Red excitation / deep red emission)
• Dell Laptop w/ Windows 11 & Typhoon FLA 9500 Software ver 1.1
• Communication and power cables.
GE Typhoon FLA 9500 Fluorescence Laser Scanner Biomolecular Imager Configuration:
• Detection Modes: Fluorescence, Phosphorimaging, Digitization
• Excitation Wavelengths: 473 nm (blue LD laser), 532 nm (green SHG laser), 635 nm (red LD laser)
• Filters: LPG (O575), LPB (Y510), BPG1 (570DF20), LPR CH2 (R665)
• PMTs: Bi-alkali, multi-alkali
• Scanning Area: 40 x 46cm
• Scan Pixel Sizes: 10, 25, 50, 100, 200um
• Pre-Scan Pixel Size: 1000um
• Dynamic range: 5 orders of magnitude
• Bit depth: 16-bit
• Image Capacity: 3510MB (10um), 561.52MB (25um), 140.35MB (50um), 35.09MB (100um), 8.77MB (200um)
Customization/Options: N/A
Testing performed by our in-house service team:
The GE Typhoon FLA 9500 Fluorescence Laser Scanner Biomolecular Imager passed all tests and was found to be fully functional:
• We powered on and initialized the imager.
• We confirmed communication with the control software.
• We tested the loading door alarm.
• We checked the filter door alarm.
• We verified full-range stage movement.
• We conducted a five-hour high-resolution stage movement test.
• We verified stage movement in both the X and Y axes.
• We confirmed full software control of system functions.
• We verified image recovery functionality.
• We performed a pre-scan verification.
• We tested imaging across the 10-200 µm resolution range.
• We performed a light bleed test (BiAlkali & MultiAlkali).
• We verified that the eraser timer functioned properly.
Instrument Overview:
• GE Typhoon FLA 9500 fluorescence laser scanner designed for high-sensitivity biomolecular imaging and quantitative analysis.
• Laser-based scanning optics deliver high resolution and consistent detection across gels, membranes, and phosphor screens.
• Multi-stage, paired with the Phosphor stage, supports fluorescence scanning, phosphor imaging, and precision sample positioning.
• Interchangeable filter carriers enable detection across multiple fluorescence emission wavelengths.
• Integrated photomultiplier tube detection system provides high dynamic range and low-noise signal acquisition.

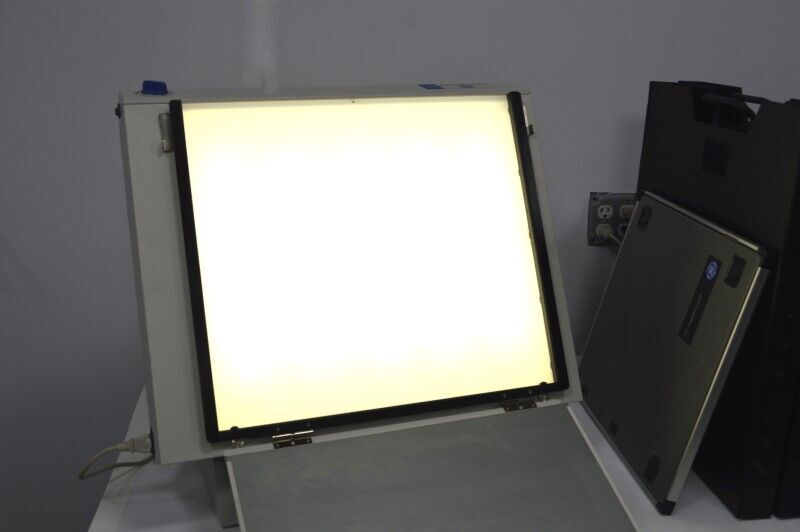

• Included FLA Image Eraser removes residual signal from phosphor screens for rapid reuse and repeat imaging workflows.
Instrument Application:
• Fluorescent gel imaging
• Phosphor screen imaging (radioisotope detection)
• Western blot fluorescence detection
• DNA and protein gel documentation
• Fluorescent microplate scanning
• Quantitative biomolecular analysis
The Key Features:
• Laser-based fluorescence scanning
• High dynamic range detection
• Multi-stage scanning platform
• Interchangeable emission filters
• High-resolution imaging capability
• Phosphor screen image eraser included
Why do so many customers choose to order from us?
Our Advantage
• We have experience servicing and repairing these instruments.
• This instrument goes through all the described service steps before shipping. see the questions section below
• We offer detailed photos and videos of the instruments you buy.
• We are an approved pre-owned equipment vendor to many large US, Canadian, and EU Universities.
• We are an approved pre-owned equipment vendor to many Fortune 500 US and International Biopharma companies.
• Technical sales consultation available
• Remote installation and instrument operation training may be available.
• On-site installation may be available in the Boston Area (New England area)
• US or International shipping is no problem (see the shipping tab on how we pack and feel at ease)
Our Guarantee
• Warranty
• You get after-sales technical support
• Customer references are available
• The instrument will be fully functional!
• Smooth process from the initial quote to order fulfillment
________________________________________
This will ship via freight. Please contact us with your zip code to obtain a shipping quote.
*LA* Large Crate
625#
PLEASE NOTE THAT THE QUESTIONS BELOW ARE ANSWERED IN MORE THOROUGH DETAIL ON OUR WEBSITE
Q: Can I view this instrument in person at your facility or do a live Zoom demo before it is shipped to me?
A: We can accommodate both in-person or Zoom demos.
Q: What about the warranty?
A: The instrument comes fully warranted for both parts and labor.
Q: Do you offer installation, service, etc?
A: We offer remote installation and training packages to familiarize you with this instrument.
Q: What should I watch out for when buying a used/pre-owned instrument from another lab?
A: Ensure that the instrument is in good working condition with no damage or wear that could affect its performance. Ask for details about testing steps performed, video demo, and test screenshots.
Q: Do you have more than one of these instruments on hand?
A: We generally carry multiple instruments on hand, along with a variety of spare parts.
Q: This procurement is for a University or College. Are purchase orders with NET terms accepted?
A: We accept purchase orders from all major US and Canadian universities.
Q: How fast will you ship?
A: We can ship within a few days to two weeks. Shipping time depends on the current demand for our instruments. Members of our sales team will be able to offer current delivery estimates.
Q: Will my instrument be insured during shipping?
A: Absolutely! We insure all our shipments as long as we are the shipper. If a customer ships on their account, they handle insurance.
Q: How do you pack? Have you previously packed and shipped the fragile laboratory instruments?
A: We have extensive experience shipping high-end and complex laboratory instruments in the US and Internationally.
Q: Do you ship Internationally?
A: Yes! We have shipped to multiple continents and over 30 countries.
Q: How much will I save buying it pre-owned, and is it worth it?
A: When compared to buying a new instrument, you will save 60% or more and have plenty of funds left over for an additional instrument or two.
TO VIEW ADDITIONAL PHOTOS, VIDEOS AND VERY DETAILED INFORMATION SUCH AS TEST STEPS PERFORMED, CONFIGURATION, ETC., PLEASE VISIT OUR WEB SITE. TO GET THERE PLEASE CLICK ON “WEBSTORE”; TO YOUR RIGHT AND YOU WILL SEE LINK TO OUR SITE IN THE MIDDLE OF THE SCREEN. THEN USE LAST 5 DIGITS OF MPN NUMBER IN THE SEARCH FIELD TO LOCATE YOUR ITEM.
DO NOT HESITATE TO CALL US OR EMAIL US WITH ANY QUESTIONS YOU MIGHT HAVE.
ALL OF OUR ITEMS ARE AVAILABLE FOR INSPECTION AT OUR FACILITY.
Return Policy
Items are sold as-is with no returns or refunds available unless explicitly stated.
