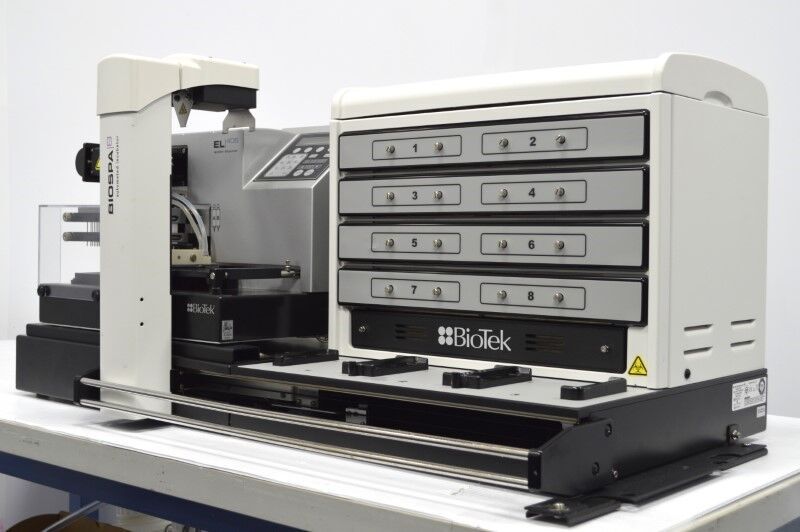

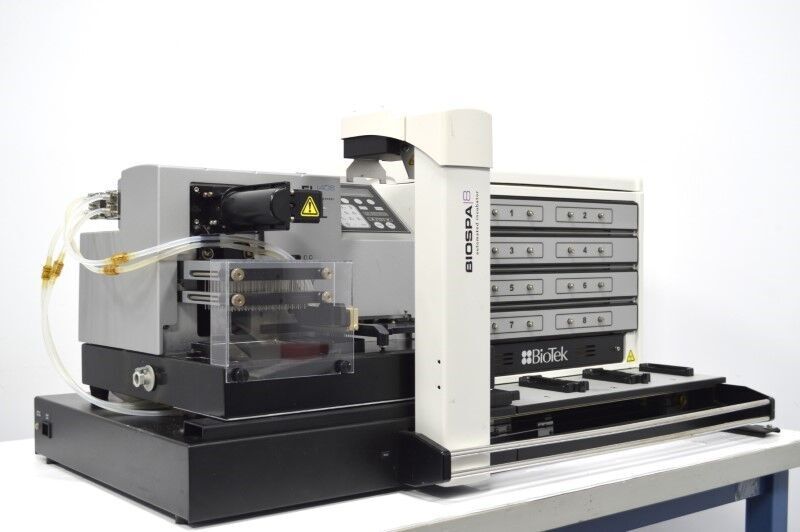

For Sale BIOTEK EL406 Agilent BioTek EL406 Microplate Washer Dispenser with BioTek BioSpa 8 Automated Incubator

For Sale Agilent BioTek EL406 Microplate Washer Dispenser with BioTek BioSpa 8 Automated Incubator

• Fully Functional
• Serviced & in Stock
• Good cosmetic condition
• Technical sales consultation available
• CONTINENTAL US 120 DAYS WARRANTY & 60 DAYS INTERNATIONAL
• Includes remote instrument setup and training session

________________________________________
The EL406 is a Predecessor to Agilent BioTek 406 FX and uses the same dispense cartridges.

EL406 is a workhorse with proven reliability. You will be especially happy with this instrument if you prefer buttons to a touch screen.

Save around $40,000 vs buying new.
________________________________________

Here is what you will receive:
• Agilent BioTek EL406 Microplate Washer Dispenser
• Standard 96/384-well wash manifold (96-Tube)
• Faster 384-well 192-tube (16x12) Manifold
• Dual Syringe Pump
• Built-in Peristaltic Pump
• Source bottle
• Waste bottle
• Tubing kit
• Vacuum Pump
• Power and communication cables
• BioSpa 8 automated incubator
• Computer running BioSpa (Requires LHC software to intergrate the EL406)

(Note: Agilent LHS software license will need to be purchased separately for approximately $1,980)

Agilent BioTek EL406 Microplate Washer Dispenser 406PSUB1 Configuration:
• Compatible Plate Formats: 96/384-well plates
• Dispensing Volume Range Peri-pump: 1-3000uL (Cassette dependant) Precision: <10% CV at 1μL/well (typical <3% CV)
• Dispensing Volume Range Washer 96-tube: 50-3000uL Precision: <3.0% CV at 300μL/well (25-5000uL with the 192-tube manifold)
• Washing: Selectable wash parameters; crosswise aspiration reduces residue
• Shaking: YES, Soaking: YES, Sonication: YES
• Number of Dispensing liquids that can be used: 3
• Number of Wash buffers 1 (up to 4 with the addition of Valve Module - not included, please inquire)

BioTek BioSpa 8 Automated Incubator Configuration:
• Microplate Types 6- to 1536-well standard-height microplates, with or without lids. Plate height range: 7.6 to 25.4 mm
• Microplate Capacity Up to eight microplates (or other labware)
• CO2 and O2 Control Range: 0−20% (CO2 ); 1−19% (O2 )
• Temperature Control Range: up to 45 DegC

Customization/Options:
• 4 Port Valve Module

Testing performed by our in-house service team:
The system passed all tests and was found to be fully functional:
• We inspected the Agilent BioTek EL406 for physical damage.
• All system components were inspected and cleaned.
• Mechanical components were inspected, adjusted, and lubricated.
• The proper operation of electronic components was confirmed.
• Necessary repairs and services were performed to ensure proper function.
• Stress tests were performed by running multiple cycles and monitoring for malfunctions.
• We checked manifold dispense and aspiration.
• Auto-clean with ultrasonication was tested.
• Method creation was checked.
• Peristaltic pump dispensing and purging were tested.
• Timed shaking was verified.
• We inspected the BioTek BioSpa incubator for physical damage.
• The BioTek BioSpa system components were inspected and cleaned.
• Mechanical components were inspected, adjusted, and lubricated.
• The proper operation of electronic components was confirmed.
• Necessary repairs and services were performed to ensure proper function.
• Stress tests were performed by running multiple cycles and monitoring for malfunctions.
• We tested communication with the BioTek washer and software.
• We verified the proper operation of all drawers.
• CO2 and O2 level control functions were checked.
• Temperature control accuracy was verified.

Instrument Overview:
• Agilent BioTek EL406 Microplate Washer Dispenser offers advanced cleaning and dispensing for diverse lab applications.
• The EL406 features both wash and dispense capabilities in a single, compact platform for high throughput.
• Compatible with a variety of plate formats, offering flexibility in assay types and laboratory needs.
• Integrated with BioTek BioSpa 8 Automated Incubator for seamless incubation, washing, and dispensing workflows.
• The system supports customizable wash protocols for precise control over buffer volumes and wash cycles.
• Designed to improve productivity, reduce manual labor, and increase consistency in microplate-based assays.

Instrument Application:
• High-throughput drug screening
• ELISA assays for protein quantification
• Cell-based assays with washing and incubation steps
• PCR setup with precise reagent dispensing
• Protein purification and analysis
• Cell proliferation
• Cytotoxicity
• 3D cell culture
• Cell fix & stain protocols

The Key Features:
• Combines washing and dispensing in one system
• Supports multiple microplate formats for versatility
• Automated incubation with BioTek BioSpa 8 integration
• Customizable wash protocols for precision and control
• High throughput, reducing manual intervention
• Ideal for assays requiring consistent results and accuracy

Why do so many customers choose to order pre-owned dispensers from us?

They want to confirm that the dispenser has been checked for consistent CVs across multiple runs.
________________________________________
They want to ensure all dispense channels are individually verified for volumetric accuracy across micro- and milliliter ranges, using gravimetric or dye-based validation protocols.
________________________________________
They want to confirm that the system delivers consistent volume per well across 96-, 384-, and 1536-well plates, eliminating the risk of edge bias, nozzle drift, or plate misalignment.
________________________________________
They want peace of mind knowing the dispenser was cleaned, serviced, and tested.
________________________________________
They want to confirm that any integrated syringe, peristaltic, or gear pump components operate within tolerance under load, without overpressure, pulsation, or valve sticking.
________________________________________
They want peace of mind knowing the dispensing heads were cleaned thoroughly and that each channel does not have any restrictions that will affect the well-to-well accuracy.

Our Advantage
• We have experience servicing and repairing these instruments.
• This instrument goes through all the described service steps before shipping. see questions section below
• We offer detailed photos and videos of the instruments you buy.
• We are an approved pre-owned equipment vendor to many large US, Canadian, and EU Universities.
• We are an approved pre-owned equipment vendor to many Fortune 500 US and International Biopharma companies.
• Technical sales consultation available
• Remote installation and instrument operation training may be available.
• On-site installation may be available in the Boston Area (New England area)
• US or International shipping is no problem (see the shipping tab on how we pack and feel at ease)

Our Guarantee
• Warranty
• An extended warranty may be available
• You get after-sales technical support
• Customer references are available
• The instrument will be fully functional!
• Smooth process from the initial quote to order fulfillment

________________________________________
This will ship via freight. Please contact us with your zip code to obtain a shipping quote.

*LA* Large Crate
400#

PLEASE NOTE THAT THE QUESTIONS BELOW ARE ANSWERED IN MORE THOROUGH DETAIL ON OUR WEBSITE

Q: Can I view this instrument in person at your facility or do a live Zoom demo before it is shipped to me?
A: We can accommodate both in-person or Zoom demos.

Q: What about the warranty?
A: The instrument comes fully warranted for both parts and labor.

Q: Do you offer installation, service, etc?
A: We offer remote installation and training packages to familiarize you with this instrument.

Q: What should I watch out for when buying a used/pre-owned instrument from another lab?
A: Ensure that the instrument is in good working condition with no damage or wear that could affect its performance. Ask for details about testing steps performed, video demo, and test screenshots.

Q: Do you have more than one of these instruments on hand?
A: We generally carry multiple instruments on hand, along with a variety of spare parts.

Q: This procurement is for a University or College. Are purchase orders with NET terms accepted?
A: We accept purchase orders from all major US and Canadian universities.

Q: How fast will you ship?
A: We can ship within a few days to two weeks. Shipping time depends on the current demand for our instruments. Members of our sales team will be able to offer current delivery estimates.

Q: Will my instrument be insured during shipping?
A: Absolutely! We insure all our shipments as long as we are the shipper. If a customer ships on their account, they handle insurance.

Q: How do you pack? Have you previously packed and shipped the fragile laboratory instruments?
A: We have extensive experience shipping high-end and complex laboratory instruments in the US and Internationally.

Q: Do you ship Internationally?
A: Yes! We have shipped to multiple continents and over 30 countries.

Q: How much will I save buying it pre-owned, and is it worth it?
A: When compared to buying a new instrument, you will save 60% or more and have plenty of funds left over for an additional instrument or two.

TO VIEW ADDITIONAL PHOTOS, VIDEOS AND VERY DETAILED INFORMATION SUCH AS TEST STEPS PERFORMED, CONFIGURATION, ETC., PLEASE VISIT OUR WEB SITE. TO GET THERE PLEASE CLICK ON “WEBSTORE”; TO YOUR RIGHT AND YOU WILL SEE LINK TO OUR SITE IN THE MIDDLE OF THE SCREEN. THEN USE LAST 5 DIGITS OF MPN NUMBER IN THE SEARCH FIELD TO LOCATE YOUR ITEM.

DO NOT HESITATE TO CALL US OR EMAIL US WITH ANY QUESTIONS YOU MIGHT HAVE.

ALL OF OUR ITEMS ARE AVAILABLE FOR INSPECTION AT OUR FACILITY.

Return Policy

Items are sold as-is with no returns or refunds available unless explicitly stated.
