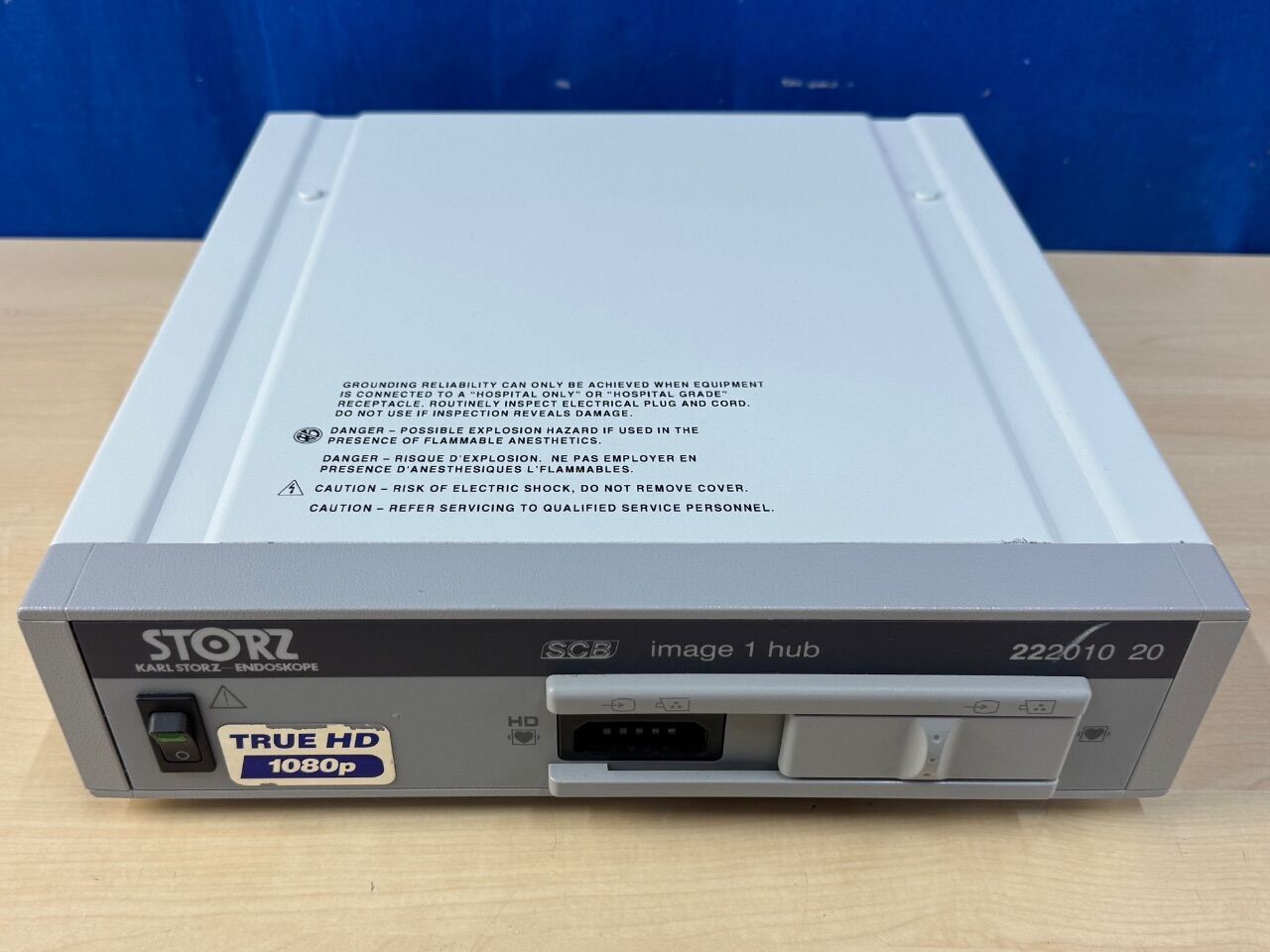

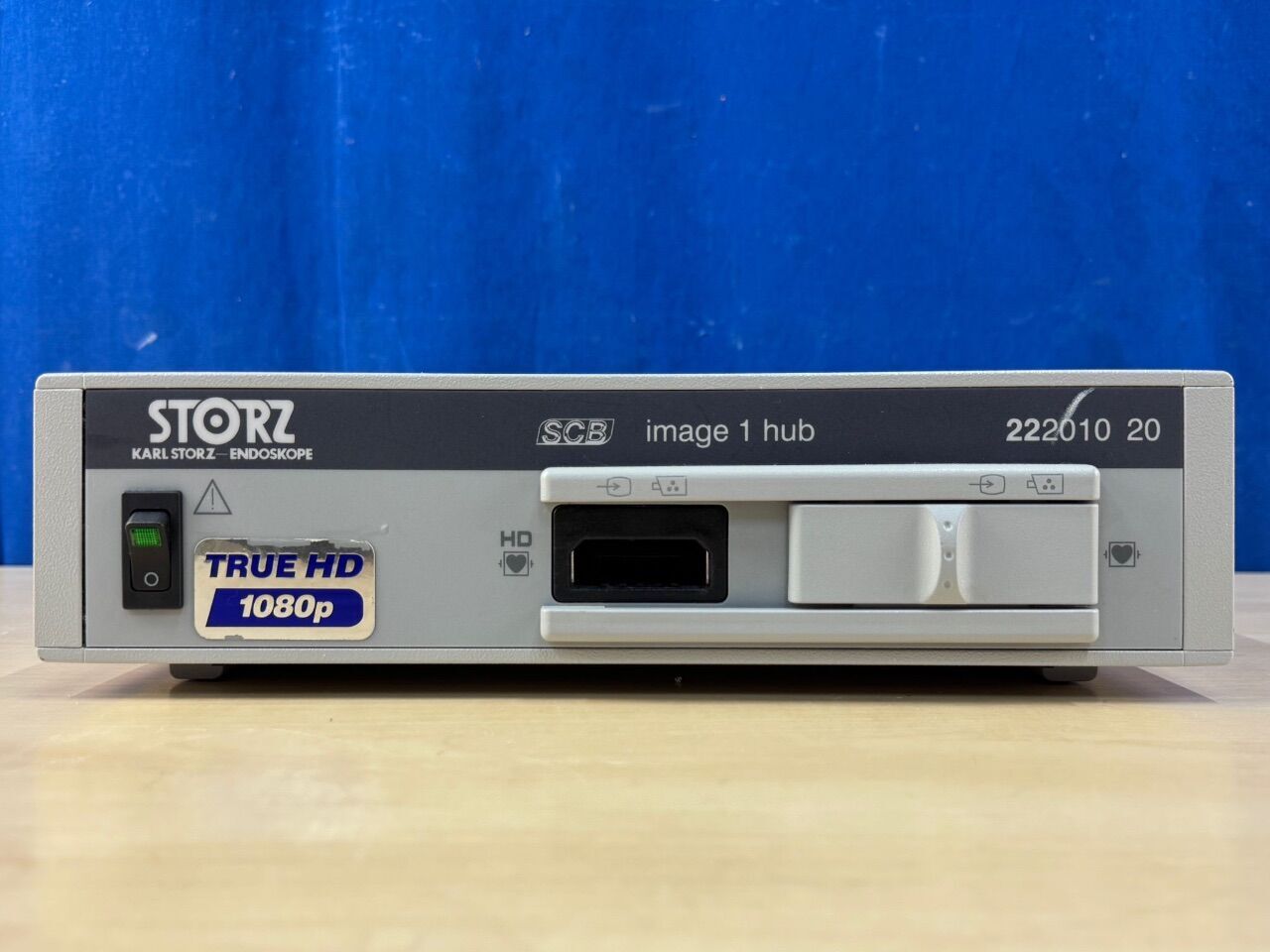

For Sale KARL STORZ Image Hub 1 processor 222010 20 Laparoscope

In good working condition.

Includes:
- Karl Storz Image Hub 1 processor 222010 20.

We ship worldwide.

Please get back to us for further queries.

The Karl Storz Image 1 HUB™ HD (222010 20) is a high-definition Camera Control Unit (CCU) designed as a versatile, central processor for endoscopic imaging. It acts as the backbone of the Karl Storz FULL HD imaging system, facilitating communication between camera heads, light sources, and peripherals in surgical environments.

- High-Definition Imaging: Delivers 1,920 x 1,080 resolution with progressive scan technology for lag-free, high-quality images and natural color reproduction.

- Modular Compatibility: Compatible with a wide range of camera heads, including Image1 FULL HD, standard single-chip, and triple-chip heads, as well as video endoscopes.

- Integrated Image Capture (ICM): Features an integrated module for recording videos and capturing still images directly to USB storage devices.

- OR Integration (SCB): Equipped with the STORZ Communication Bus (SCB), allowing it to connect and control other Karl Storz devices (e.g., light sources, insufflators) via the camera head buttons or a central touchscreen.

- User Connectivity: Includes front and rear USB ports for data management and printing.


Technical Specifications
- Model/Part Number: Image 1 HUB 222010 20

- Resolution: 1920 x 1080 pixels (Full HD)

- Scanning System: Progressive Scan

- Color System: PAL/NTSC compatible

- Voltage: 100-240 VAC, 50/60 Hz

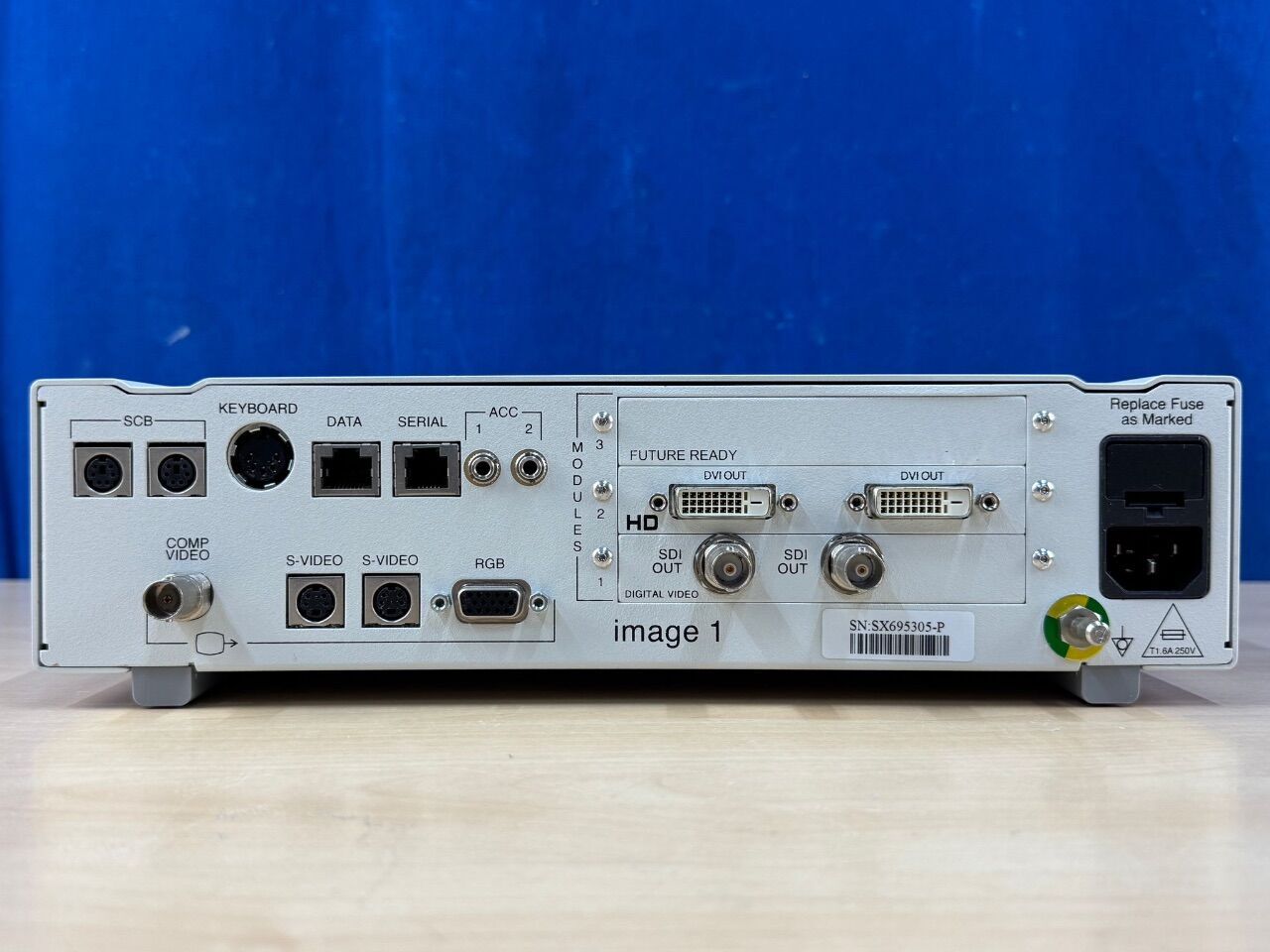

- Inputs/Outputs: HD-SDI (optional), DVI-D, S-Video (Y/C), BNC, SCB (6-pin Mini-Din), USB

- Dimensions: Approx. 305 x 89 x 335 mm

- Weight: ~4 kg



Functions
- Image Enhancement: Provides digital image processing and filtering to increase contrast and definition.

- Automatic Exposure: Features advanced exposure control for optimal lighting.

- Status Display: Provides on-screen display (OSD) of camera and connected device status


The Karl Storz Image Hub 1 Processor 222010 20 is a reliable used unit designed for use in laparoscopic procedures. This image processor delivers high-quality visuals essential for precise diagnostics and surgical interventions. With its robust construction from a reputable manufacturer like Karl Storz, it ensures durability and consistent performance over time.

This model supports vivid imaging with its advanced processing capabilities, aiding medical professionals in achieving optimal results. It is straightforward to integrate into existing systems, making it a convenient choice for facilities looking to upgrade or expand their laparoscopic imaging capabilities without incurring the costs of new equipment.

While the unit is used, it maintains functionality and efficiency, being thoroughly inspected and prepared for clinical use. This Karl Storz Image Hub 1 processor offers reliability and performance that meet the demanding needs of modern surgical environments.

Return Policy

21 Day Return Policy. Free Return. All items are sold as-is in their present condition. Returns or refunds will not be accepted unless explicitly stated. Warranty terms are available upon request.
