For Sale SPECTRAL OCT SLO OPKO - OTI OCT

Reconditioned (used),
Technical condition: very good,
Visual condition: very good,
Real product photos,
Made in the USA,
Power supply: 230 V,
Frequency: 50/60 Hz,
Power: 600 VA,

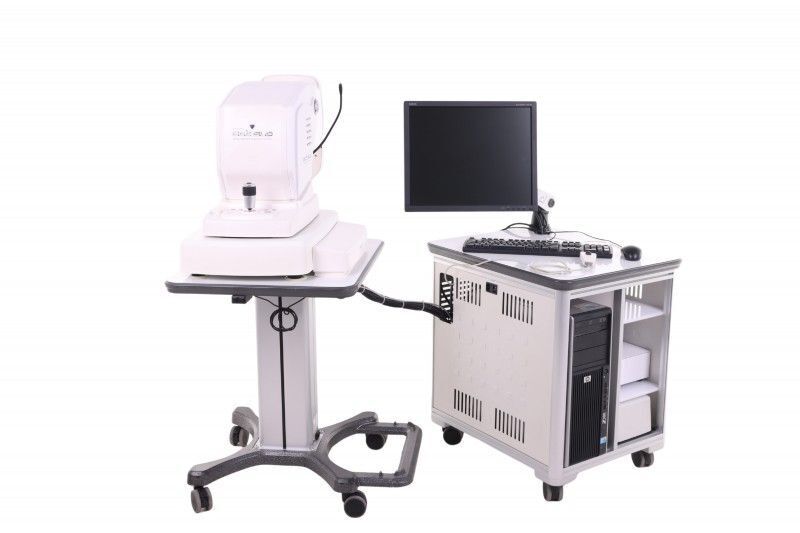

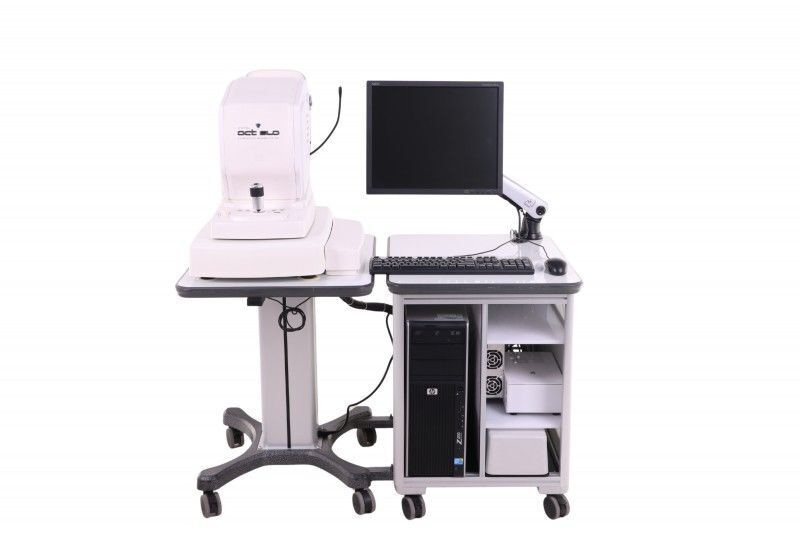

The Spectral OCT/SLO Ophthalmoscope is an optical image acquisition system designed to simultaneously capture retinal layer images (OCT) with confocal fundus images (SLO),
High sensitivity and reliability for better patient care:
Simplified scanning process,
Increased patient throughput,
Greater operator confidence,
High repeatability of results,
Key imaging features:
Accurate reproduction of the retinal layers,
Better differentiation of the vitreoretinal boundary,
Ultra high resolution images,
Clearer detail reproduction,
Comprehensive diagnostic capabilities - OCT SLO provides quantitative analysis, enabling accurate monitoring of:
Progression of the disease,
Regression changes,
Mapping and analysis:
Creation of detailed topographic maps (area and volume),
Interactive environment for data review,
Overlaying maps on the SLO retinal image for precise positioning,
Automatic matching of subsequent tests,
Reliable patient monitoring:
Automatic matching of tests between visits,
Difference analysis (before and after treatment, e.g. CME),
Recording only changes over time,
The system generates:
Representation of changes in 2D,
3D representation of changes,
Optic Disc Analysis - Three-dimensional optic disc analysis is based on a stack of OCT images:
SLO image confirms the exact location of the data,
Ensures repeatability and precision of location,
Technical specifications:
Tomographic imaging (OCT)
Purpose: Cross-sectional imaging of eye structures, including the fundus
Signal type: Optical scattering in tissues
Signal Source: Superluminescent Diode (SLD), 830 nm
Optical power: <750 microwatts at the cornea
Axial resolution: < 6 micrometers (on screen)
Lateral resolution: 20 micrometers (in tissue)
Scanning modes:
Linear scan (B-scan),
Raster scan,
Scanning speed:
8/16 or 32 frames per second,
Scanning range (depth): 2.0 mm,
Fundus Imaging (FLO):
Objective: Confocal SLO fundus image for alignment, orientation and registration of OCT image for further observation,
Field of view: 29°,
Equipment:
Control unit: PC with WINDOWS XP system and pre-installed OCT control software – OPTON OCT SLO,
NEC AccuSync AS191 LCD monitor with a 19” diagonal on a pantograph arm,
Wired HP mouse and keyboard,
Wired patient button,
Fixation point,
Printer,
The equipment is placed on a mobile table divided into 2 parts with electric height adjustment in the range of: 70 – 94 cm,
Possibility to choose the menu in: English, German,
Included in the set:
NEC AccuSync AS191 LCD monitor,
PC computer station,
Wired HP keyboard and mouse,
Fixation point,
Wired patient button,
Printer,
Power cord,
Overall dimensions: 108 x 65 x 123 cm,
Weight: 100 KG,
It has a current inspection and is ready to work,
Issued Technical Passport (Service Report) valid for 12 months,
Guarantee:
6 months for the domestic market (Poland),
3 months to the international market,
Possibility of extending the warranty for an additional fee up to 12 months for the domestic and international markets,
The warranty period does not cover light bulbs and other light sources installed in the device,
Financing options (Poland only): Installments, Leasing, Loan,

Return Policy

Items are sold as-is with no returns or refunds available unless explicitly stated.
