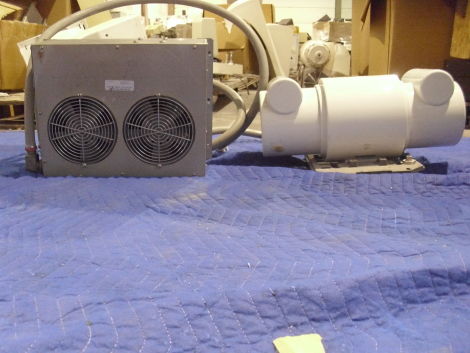

For Sale VARIAN Varian GS-2078 CT X-Ray Tube and B-220H Housing with Heat Exchan X-Ray Tube Parts P/N GS-2078

One Untested Varian X-Ray tube. Being sold AS-IS, no warranty. We will wrap, pack, and palletize for you. For International Shipping contact seller. Details below.
Manufacturing Date: February 2001

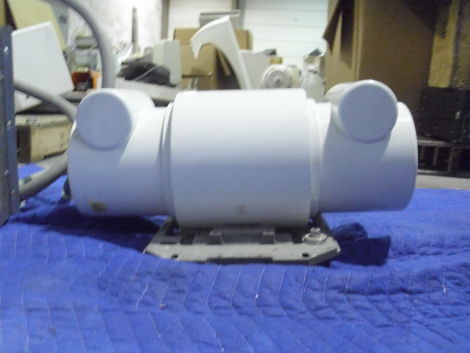

Housing Model Type: B220H
Housing Serial Number: H28734
Tube Type: GS-2078
Tube Insert Serial Number: 28734-1N

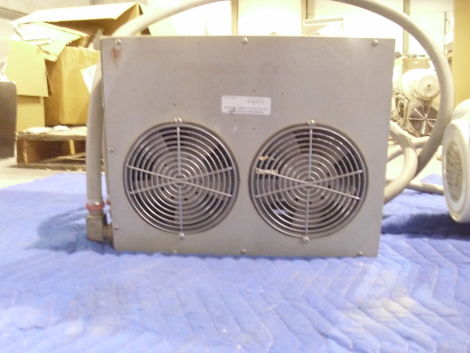

HE-580A Heat Exchanger: 110-120 Volts, 3 Amps, 50-60 Hz
Product Description
The GS-2078 is a 5.25” (133 mm) 150 kV, 1,429 kJ (2.0 MHU) maximum anode heat content, rotating anode insert. This insert is specifically designed for CT Scanners. The insert features a 7° tungsten-rhe- nium facing on molybdenum with a graphite backed target and is available with the following nominal focal spot:
1.1 x 1.3
1.7 x 1.7 IEC 60336
Loading Factor for slit focal:
Small - 120 kV, 100 mA Large - 120 kV, 150 mA
Maximum Anode Cooling Rate:
4,000 W (5,600 HU/sec)
Maximum continuous anode heat dissipation:
3,000 W (4,200 HU/sec)
Nominal Anode Input Power:
Small - 41 kW IEC 60613 Large - 54 kW IEC 60613
Reference Axis:
Perpendicular to port face.

Return Policy

Items are sold as-is with no returns or refunds available unless explicitly stated.
